uv light fly insect sticky glue trap machine glue board insect roll
trap machine
Insect glue traps machine character (roll traps )
The main characteristics of the coil type: the Japanese Mitsubishi
full computer control system and the Yaskawa servo motor frequency
conversion control, the whole roll of cardboard or plastic board
and the whole roll of anti-sticking paper are used as the material,
automatic unwinding-automatic coating glue-automatic Adhesive paper
on the mating surface-Automatically apply the second side
glue-Automatically adhere to the second surface of the anti-sticky
paper-Automatically cut into a finished product (attractive) sticky
insect board that meets the specifications, all actions are done in
one go, synchronized; production Speed: 100m / min (Standard gauge
sticky insect board is about 20,000 sheets / hour); It can be
automatically cut off during glue application or can be glued on
the whole surface; compatible with the production of various
specifications (bait) sticky insect board, Cardboard
specifications, glue coating and slitting length and width can be
adjusted; only one person is required
2.Insect glue traps machine character (Trap In pieces )
Main characteristics of sheet type: adopting Mitsubishi full
computer control system and Yaskawa servo motor frequency
conversion control, using sheet-type cardboard or plastic board and
the whole roll of anti-sticking paper as the material, automatic
paper feeding-automatic glue application -Automatic slitting and
automatic compounding of anti-sticky paper; automatic counting;
automatic feeding of sheets or plastic sheets on the bottom
production line-automatic glue application, automatic unwinding of
the whole roll of anti-sticking paper on the top -Automatically
adhere to the glued cardboard ... This machine can be glued and
combined with 650mm wide cardboard and anti-sticking paper, and the
remaining specifications can be customized
3.Other insect glue roll traps making machine
| Type | Machine name |
| 01 | Mouse glue traps making machine |
| 02 | Cockroach glue traps making machine |
| 03 | fly glue traps making machine |
2)Finished yellow sticky glue traps and application field
Based on insect hobby , Yellow and blue color are popular in market .
Yellow insect glue trap Board : Yellow stalk, adult worm, whitefly, locust, leafhopper, hummer
Blue insect glue trap board : Whitefly, rice planthopper, pear hibiscus, leaf miner, fruit
fly, aphid, hummer, wax, leaf

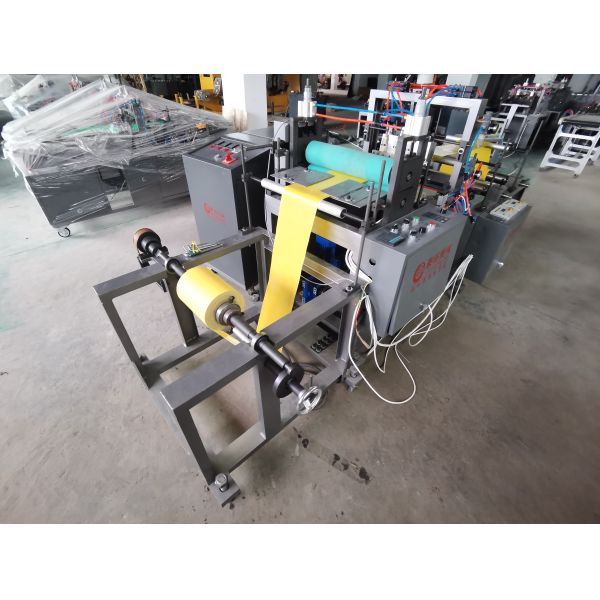

3)Whole insect glue traps making machine pictures
