Automatic Middle Speed Corrugated Box Die Cutting Machine Pizza Box Making Machine

一．Introduce:

MQJ series of rotary diecutter for cutting a variety of corrugated board and all kinds of special-shaped packaging.

It has a high efficiency, power saving, safe features, is the third generation of domestic rotary die-cutter.

The machine is equipped with imported polyurethane felt( anivil cover), its service life of up to 10 million times,

the line speed automatic compensation function can ensure that the blanket wear after the mold cut out the normal

size of the cardboard, soft roller repair mechanical color can extend the service life of three Times.The machine use ,

the use of more convenient operation.

二．Specifications and technical parameters:

三,Main configuration:

1)Paper feed section

1, adopt the advance technical half wheel model Feeding system, paper feed high

accurate ,economic speed of 6000 per hour, die-cutting accuracy +- 1mm. completed

slotting, cut corner, crease, punching. Saving labor, improve production efficiency.

2, the phase using electric adjustment structure, 360-degree rapid adjustment.

3, feed roller with glue groove surface, to prevent crushing cardboard, increase the

accuracy of paper feed.

4, paper towel with high strength polyurethane material, durable.

2)Electrical department

1, main motor electromagnetic speed power 5.5kw, Hengshui motor to save power.

2, ahead and back control panel concise, easy to operate.

3, whole machine light, electricity, air joint control system.

4, whole electrical accessories are brand-name manufacturers products.

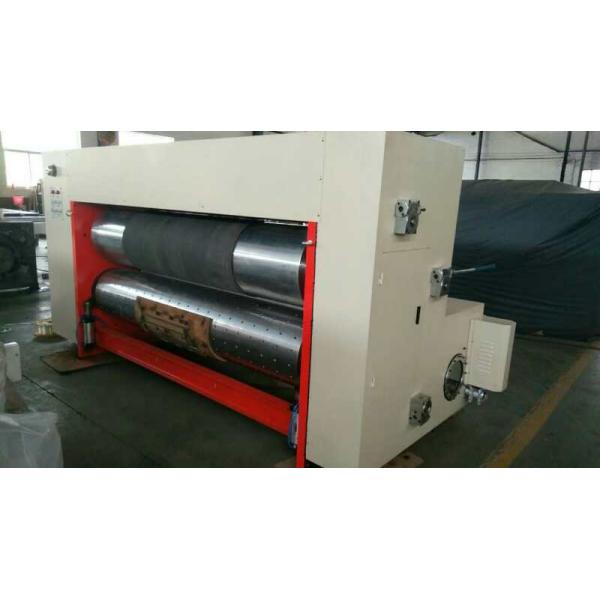

3)Die-cutting

1, die-cutting roller for high-quality steel, wall thickness 30mm, balanced correction, hard chrome plated

2, wall panels for high-quality cast iron material, wall thickness 50mm, large-scale processing center production.

3, anivil cover automatic grinding mechanism to improve the re-use rubber, grinding 3-4 times.

4, the line speed automatic compensation to ensure that each batch of carton die cutting size exactly the same.

5, imported polyurethane anivil cover, easy installation, die cutting 12 million times.

6, cam-type soft roller around the horizontal movement of 40mm, pad wear evenly.

7, lubrication system oil-immersed lubrication, simple and efficient

Hebei Jinguang Packing Machine Co.Limited is a professional corrugated carton printing equipment and related machinery for carton production over ten years.Our company is located in the Lisiwei industrial part ,Dongguang country Hebei Province.Our main products are corrugated carton box printing,slotting,die cutting machine (simiauto,automatic).Middle high speed corrugated paperboard production line,automatic folder gluer machine,stitching machine,flute laminator ,thin blade slitter,partition machine ,automatic assemble machine,binding machine and so on.
